Description
ISBM machine technology represents the pinnacle of integrated container manufacturing, combining two critical processes into a single, streamlined workflow. By merging injection molding and stretch blow molding within one cohesive system, our factory provides a solution that minimizes material handling and reduces the risk of contamination. This single step approach is particularly advantageous for manufacturers seeking to produce high-clarity PET containers with consistent wall thickness and superior mechanical properties. Whether you are operating in the United States, Germany, Brazil, or Australia, our engineering standards ensure that each unit meets the rigorous demands of modern packaging lines. Investing in this technology allows your facility to achieve higher throughput while maintaining the strict quality controls required for food-grade and beverage-grade applications.
Selecting the right equipment involves understanding the nuances between different configurations such as the BPET-70V4, BPET-94V3, or the larger capacity BPET-125V4. Each model is designed to handle specific volume requirements and material characteristics, ensuring that your production goals align with the technical capabilities of the hardware. Our factory focuses on delivering stability and long-term reliability, recognizing that downtime in a continuous production environment is costly. By utilizing advanced thermal management and precise mechanical synchronization, the unit provides a predictable manufacturing environment. This guide explores how our injection stretch blow molding machine series can be integrated into your existing infrastructure to drive efficiency and improve the overall quality of your finished bottle products.
ISBM Machine Parameters:
The table below lists the core technical parameters used to size the unit. Available models include BPET-70V4, BPET-125V4, BPET-94V3. Use it together with your throughput and load requirements when comparing options.
| Parameter | BPET-70V4 | BPET-125V4 | BPET-94V3 |
|---|---|---|---|
| Screw diameter (mm) | 45 | 60 | 60 |
| L/D | 24 | 24 | 24 |
| Theoretical injection capacity (cm3) | 340 | 480 | 480 |
| Injection clamping force (kn) | 285 | 685 | 785 |
| Blow clamping force (kn) | 115 | 286 | 298 |
| Chilled water (L/min) | 80 | 80 | 80 |
| Cooling tower water (L/min) | 200 | 200 | 200 |
| Driving power-rated (kw) | 44KW-380V | 65KW-380V | 65KW-380V |
| Heater power-rated (kw) | 8.9KW-220V | 12.5KW-220V | 12.5KW-220V |
| Oil tank capacity (L) | 460 | 640 | 620 |
| Machine dimensions (L*W*H(mm)) | 4400*1350*2900 | 5000*2050*3000 | 4800*2050*3000 |
| Machine weight (T) | 5.1 | 11.6 | 11.6 |
| Max. Blow air pressure (Mpa) | 3.5 | 3.5 | 3.5 |
| Machine running air pressure (Mpa) | 1 | 1 | 1 |
ISBM Machine Key Features:
Robust Structural Integrity
The foundation of every unit is built upon a heavy-duty, reinforced frame designed to absorb vibrations and maintain perfect alignment during high-speed cycles. We utilize premium-grade materials for the chassis to ensure long-term dimensional stability, which is critical for maintaining tight tolerances in the molding process. By minimizing structural deflection, the drive ensures that every injection and blow cycle is executed with absolute precision. This rigid construction not only extends the operational lifespan of the machine but also protects sensitive electronic and hydraulic components from the stresses of continuous industrial use. Our factory prioritizes this level of durability to support high-volume manufacturing environments where equipment must run reliably for years.
Unmatched Process Repeatability
Achieving consistent bottle quality requires extreme control over every variable, from melt temperature to blow pressure. The unit employs sophisticated control systems that regulate the timing and synchronization of the injection and stretching phases with microscopic accuracy. This level of repeatability ensures that every container produced matches the exact specifications of the previous one, significantly reducing scrap rates and material waste. Whether you are running the BPET-70V4 or a larger model, the internal logic manages thermal profiles and mechanical movements to eliminate deviations. Such precision is essential for brands that require uniform aesthetic clarity and structural strength across their entire product range.
Optimized Production Efficiency
Efficiency is at the core of our design philosophy, focusing on reducing cycle times without compromising the integrity of the material. The integrated nature of this injection stretch blow molding machine allows for a seamless transition between the preform creation and the final blowing stage, eliminating the need for intermediate transport or storage. This streamlined workflow reduces energy consumption per unit produced and maximizes the output of your facility. By optimizing the heating and cooling phases, the drive achieves rapid turnaround times, allowing manufacturers to respond quickly to market demands. Our engineering team has refined these cycles to ensure that throughput remains high even during extended production runs.
Superior Surface Finish Quality
The quality of the final product is often determined by the precision of the mold interface and the smoothness of the stretching process. The unit is engineered to provide uniform heat distribution, preventing hot spots or uneven cooling that could lead to optical distortions in the PET material. This results in containers with exceptional clarity and a professional finish that meets the high standards of the beverage and cosmetic industries. By maintaining strict control over the stretch ratio and air pressure, it produces bottles with consistent wall thickness and excellent bottom-forming characteristics. This high level of finishing capability makes it an ideal choice for premium packaging requirements.
Simplified Serviceability
We understand that ease of maintenance is vital for minimizing downtime in a busy factory setting. The unit features an intuitive layout with accessible access panels, allowing technicians to reach critical components such as filters, sensors, and hydraulic lines without extensive disassembly. Modular component design means that routine replacements can be performed quickly and efficiently, keeping your production schedule on track. All major wear parts are positioned for easy inspection, facilitating proactive maintenance rather than reactive repairs. This user-centric approach to engineering ensures that managing the equipment is straightforward, reducing the specialized training required for your local maintenance teams.
Versatile Configuration Options
To meet diverse market needs, our product range offers various configurations tailored to different production scales and bottle geometries. From the compact BPET-70V4 to the high-capacity BPET-125V4, the flexibility of these systems allows you to scale your operations as demand grows. The ability to switch between different molds and adjust parameters for various resin grades ensures that the equipment remains a versatile asset in your production portfolio. This adaptability means you can produce a wide array of container shapes and sizes using the same fundamental technology, providing a high return on investment through multi-purpose utility and long-term operational flexibility.
ISBM Machine Application:
The applications for this technology are vast, spanning industries that require high-clarity, high-strength plastic packaging. In the beverage sector, it is used to produce everything from small water bottles to large-format carbonated soft drink containers, where pressure resistance and optical clarity are paramount. The food industry also relies on these units to create durable containers for oils, sauces, and various consumer goods that require strict hygiene standards. Because the process occurs in a single step, the risk of environmental contamination is greatly reduced, making it an excellent choice for products requiring high levels of purity.
Beyond standard beverage packaging, the unit finds significant use in the pharmaceutical and cosmetic industries. These sectors demand containers with precise dimensions and exceptional surface finishes to maintain brand prestige and ensure product safety. The ability to precisely control the stretching process allows for the creation of complex geometries required for specialized dispensing bottles or luxury skincare packaging. By matching the specific model—such as the BPET-94V3—to your target volume and shape requirements, you can optimize your production line for niche markets that demand high-quality, specialized PET containers with consistent performance.
ISBM Machine Usage Method:
-

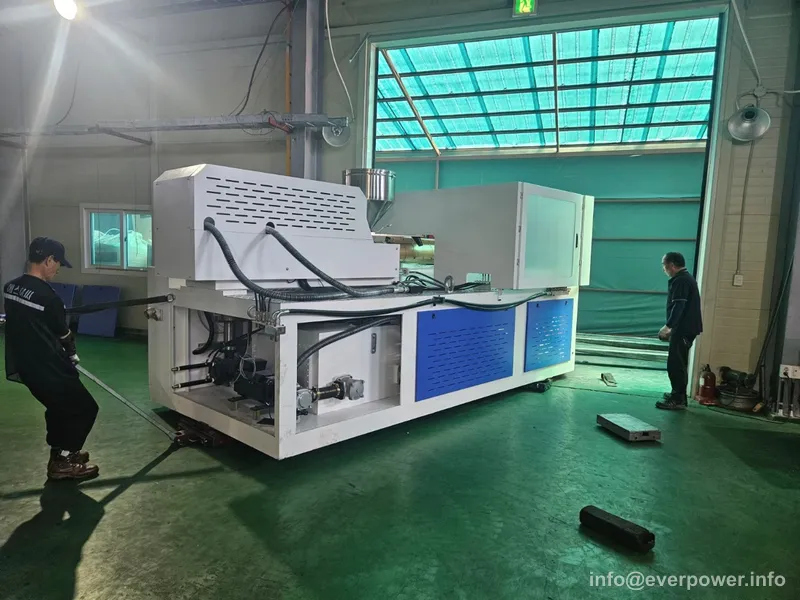

1. Site Preparation And Mounting
Before the arrival of the unit, ensure that your facility floor is leveled and capable of supporting the substantial weight of the machine. A stable, reinforced foundation is necessary to prevent any micro-vibrations that could interfere with the precision of the molding process. Once positioned, secure the frame to the ground according to our technical guidelines to ensure absolute stability during high-speed operation. Proper placement should also account for adequate ventilation and clearance around the unit to facilitate easy access for operators and maintenance staff throughout the production cycle.
-
2. Utility Integration And Connection
Once the machine is securely mounted, proceed with connecting the necessary industrial utilities. This includes high-pressure air lines, water cooling circuits, and electrical power supplies as specified in your model's technical documentation. It is vital to ensure that all connections are leak-proof and that the pressure levels remain within the confirmed operating ranges. Proper integration of the cooling system is particularly important to manage the thermal loads during the injection and blowing phases. All connections should be verified by a qualified technician to ensure they meet local industrial safety standards before any power is applied.
-
3. Initial Parameter Setup And Run In
With utilities connected, begin the startup sequence by initializing the control system and loading the specific recipe for your chosen mold. During the initial run-in period, closely observe the heating cycles and the synchronization between the injection and stretching mechanisms. It is recommended to start with a lower production speed to verify that the material flows correctly and that the bottle geometry meets your requirements. Gradually increase the cycle speed while monitoring the thermal stability of the unit, ensuring that all parameters remain consistent with the specifications provided in the technical manual.
-
4. Real Time Performance Monitoring
During active production, continuous monitoring of the control interface is essential to maintain quality standards. Pay close attention to indicators such as injection pressure, blow pressure, and mold temperature profiles. Any deviation from the established baseline should be investigated immediately to prevent the production of defective units. Utilizing the integrated diagnostic tools allows you to track cycle times and material consumption in real time. Regular checks of the finished containers for wall thickness uniformity and clarity will provide immediate feedback on whether the machine is operating within its optimal performance window.
-
5. Scheduled Preventative Maintenance
To ensure long-term reliability, implement a strict routine maintenance schedule based on your production volume. This includes regular lubrication of moving mechanical parts, cleaning of the heating elements, and inspection of all hydraulic seals and air filters. Periodically check the alignment of the stretching rods and the integrity of the mold surfaces to prevent wear that could affect bottle quality. By addressing minor issues through proactive service, you can avoid unexpected downtime and extend the overall service life of the drive. Always refer to the specific maintenance checklist provided by our factory for your particular model.
Our factory is dedicated to providing high-performance molding solutions that empower manufacturers to achieve excellence in container production. Whether you are looking to upgrade an existing line or establish a new facility, our range of injection stretch blow molding technology offers the reliability and precision your business requires. We invite you to contact us through our official channels to discuss your specific production requirements, request detailed technical specifications for models like the BPET-70V4 or BPET-125V4, or receive a customized consultation. Let our expertise help you optimize your manufacturing efficiency and deliver superior products to your global customers.
